$1,322.00
per spectrometer
| Configuration | |
|---|---|
| Model | ATP1010 |
| Spectral range | 200 nm-1000 nm |
| Slit width | 25 micron |
| Detector | UV-enhanced 512-pixel linear CMOS |
| Optical path | |
| Design | F/4 crossed Czerny-Turner |
| Input | SMA905 or free-space input |
| Resolution | 1 nm-5 nm, dependent on slit and spectral range |
| Performance | |
| SNR | >450:1 |
| Dynamic range | 3000:1 |
| Integration time | 1 ms-65 s |
| Electrical | |
| Data output | USB 2.0 high speed or UART |
| ADC | 16 bit |
| Power | DC 4.5 V-5.5 V, Type-C USB or extendable power |
| Expansion interface | 10-pin, 2x5, 1.27 mm pitch |
| Operating environment | |
| Operating temperature | -10 °C to +50 °C |
| Storage temperature | -20 °C to +70 °C |
| Humidity | <90% RH |

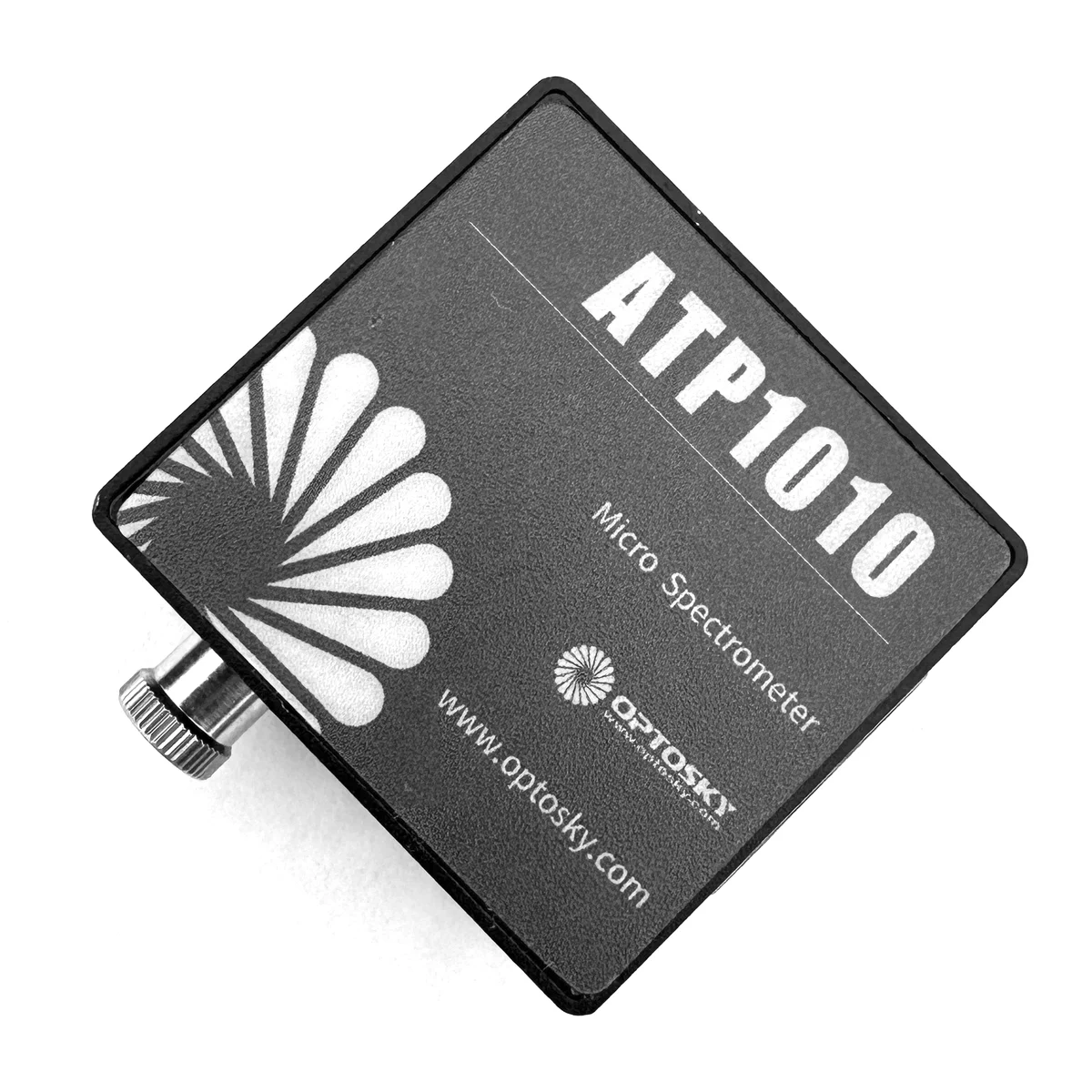

The ATP1010 is a compact UV-VIS spectrometer for embedded, bench, and field measurement setups that need broad 200 nm-1000 nm coverage in a small instrument. This configuration pairs a 25 micron slit with a UV-enhanced 512-pixel CMOS detector and crossed Czerny-Turner optical bench.
Use it for absorbance, transmission, reflection, fluorescence, LED and color measurement, water-quality instrumentation, and fiber-laser LIBS setups where a lightweight USB/UART spectrometer is easier to integrate than a larger lab instrument.
If you need slit widths or wavelength ranges not available in the listed configuration, please contact us at [email protected] for a custom quote.
